Arrow in R: In-Memory Workflows

arrow 📦

Arrow & Single Files

library(arrow)

• read_parquet()
• read_csv_arrow()
• read_feather()
• read_json_arrow()

Value: tibble (the default), or an Arrow Table if as_data_frame = FALSE — both in-memory

Your Turn

1. Read in a single NYC Taxi parquet file using read_parquet() as an Arrow Table

2. Convert your Arrow Table object to a data.frame or a tibble

Read a Parquet File (tibble)

library(arrow)

parquet_file <- here::here("data/nyc-taxi/year=2019/month=9/part-0.parquet")

taxi_df <- read_parquet(parquet_file)
taxi_df

# A tibble: 6,567,396 × 22
   vendor_name pickup_datetime     dropoff_datetime    passenger_count
   <chr>       <dttm>              <dttm>                        <int>
 1 CMT         2019-08-31 20:09:30 2019-08-31 20:15:42               1
 2 CMT         2019-08-31 20:26:30 2019-08-31 20:44:31               1
 3 CMT         2019-08-31 20:39:35 2019-08-31 21:15:55               2
 4 VTS         2019-08-31 20:12:26 2019-08-31 20:15:17               4
 5 VTS         2019-08-31 20:43:16 2019-08-31 20:53:50               1
 6 VTS         2019-08-31 20:26:13 2019-08-31 20:45:35               1
 7 CMT         2019-08-31 20:34:52 2019-08-31 20:42:03               1
 8 CMT         2019-08-31 20:50:02 2019-08-31 20:58:16               1
 9 CMT         2019-08-31 20:08:02 2019-08-31 20:14:44               0
10 VTS         2019-08-31 20:11:38 2019-08-31 20:26:47               1
# ℹ 6,567,386 more rows
# ℹ 18 more variables: trip_distance <dbl>, pickup_longitude <dbl>,
#   pickup_latitude <dbl>, rate_code <chr>, store_and_fwd <chr>,
#   dropoff_longitude <dbl>, dropoff_latitude <dbl>, payment_type <chr>,
#   fare_amount <dbl>, extra <dbl>, mta_tax <dbl>, tip_amount <dbl>,
#   tolls_amount <dbl>, total_amount <dbl>, improvement_surcharge <dbl>,
#   congestion_surcharge <dbl>, pickup_location_id <int>, …

Read a Parquet File (Table)

taxi_table <- read_parquet(parquet_file, as_data_frame = FALSE)
taxi_table

Table
6567396 rows x 22 columns
$vendor_name <string>
$pickup_datetime <timestamp[ms]>
$dropoff_datetime <timestamp[ms]>
$passenger_count <int64>
$trip_distance <double>
$pickup_longitude <double>
$pickup_latitude <double>
$rate_code <string>
$store_and_fwd <string>
$dropoff_longitude <double>
$dropoff_latitude <double>
$payment_type <string>
$fare_amount <double>
$extra <double>
$mta_tax <double>
$tip_amount <double>
$tolls_amount <double>
$total_amount <double>
$improvement_surcharge <double>
$congestion_surcharge <double>
$pickup_location_id <int64>
$dropoff_location_id <int64>

tibble <-> Table <-> data.frame

library(dplyr)

#change a df to a table
arrow_table(taxi_df)

#change a table to a tibble
taxi_table |> collect()
as_tibble(taxi_table)

#change a table to a data.frame
as.data.frame(taxi_table)

• data.frame & tibble are R objects in-memory
• Table is an Arrow object in-memory

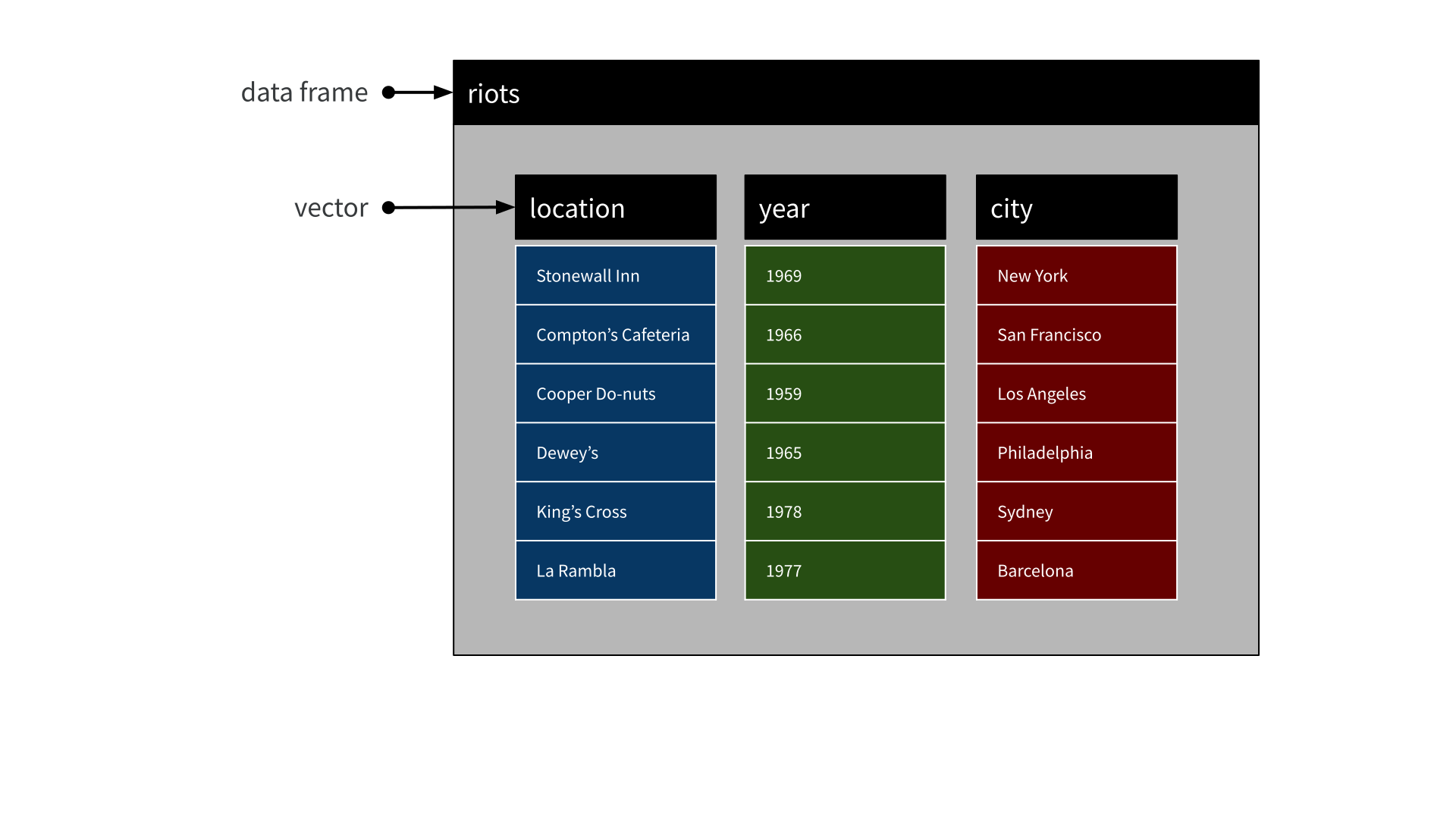

Data frames

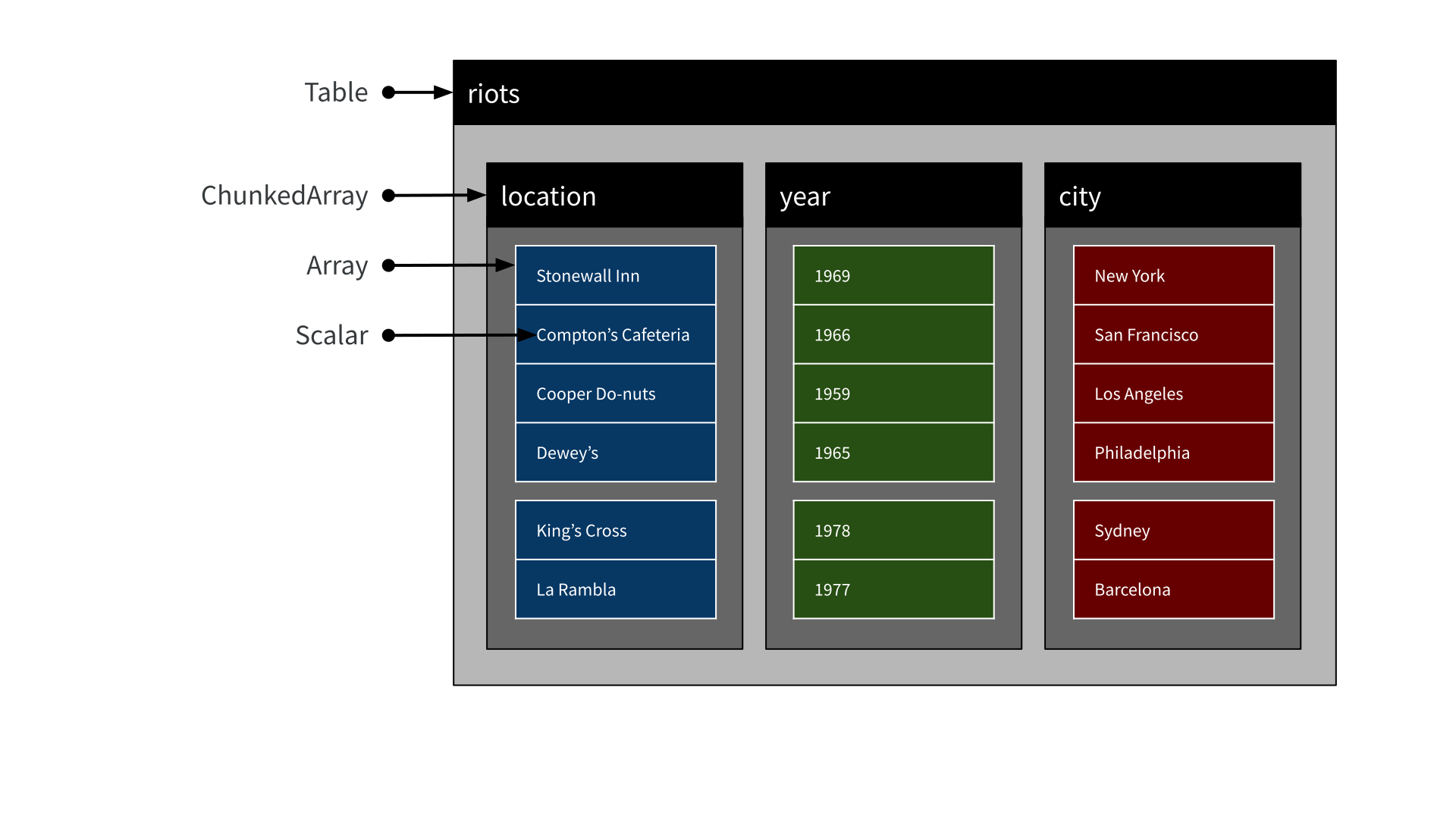

Arrow Tables

Arrow Tables are collections of chunked arrays

Table | Dataset: A dplyr pipeline

parquet_file |>
  read_parquet(as_data_frame = FALSE) |>
  group_by(vendor_name) |>
  summarise(all_trips = n(),
            shared_trips = sum(passenger_count > 1, na.rm = TRUE)) |>
  mutate(pct_shared = shared_trips / all_trips * 100) |>
  collect()

# A tibble: 3 × 4
  vendor_name all_trips shared_trips pct_shared
  <chr>           <int>        <int>      <dbl>
1 CMT           2294473       470344       20.5
2 VTS           4238808      1339478       31.6
3 <NA>            34115            0        0

Functions available in Arrow dplyr queries: https://arrow.apache.org/docs/r/reference/acero.html

All the same capabilities as you practiced with Arrow Dataset

Arrow for Efficient In-Memory Processing

parquet_file |>
  read_parquet() |>
  nrow()

[1] 6567396

parquet_file |>
  read_parquet() |>
  group_by(vendor_name) |>
  summarise(all_trips = n(),
            shared_trips = sum(passenger_count > 1, na.rm = TRUE)) |>
  mutate(pct_shared = shared_trips / all_trips * 100) |>
  collect() |>
  system.time()

   user  system elapsed
  1.549   0.258   0.554

Arrow for Efficient In-Memory Processing

parquet_file |>
  read_parquet(as_data_frame = FALSE) |>
  nrow()

[1] 6567396

parquet_file |>
  read_parquet(as_data_frame = FALSE) |>
  group_by(vendor_name) |>
  summarise(all_trips = n(),
            shared_trips = sum(passenger_count > 1, na.rm = TRUE)) |>
  mutate(pct_shared = shared_trips / all_trips * 100) |>
  collect() |>
  system.time()

   user  system elapsed
  1.439   0.198   0.259

Read a Parquet File Selectively

parquet_file |>
  read_parquet(
    col_select = c("vendor_name", "passenger_count"),
    as_data_frame = FALSE
  )

Table
6567396 rows x 2 columns
$vendor_name <string>
$passenger_count <int64>

Selective Reads Are Faster

parquet_file |>
  read_parquet(
    col_select = c("vendor_name", "passenger_count"),
    as_data_frame = FALSE
  ) |>
  group_by(vendor_name) |>
  summarise(all_trips = n(),
            shared_trips = sum(passenger_count > 1, na.rm = TRUE)) |>
  mutate(pct_shared = shared_trips / all_trips * 100) |>
  collect() |>
  system.time()

   user  system elapsed
  0.276   0.012   0.144

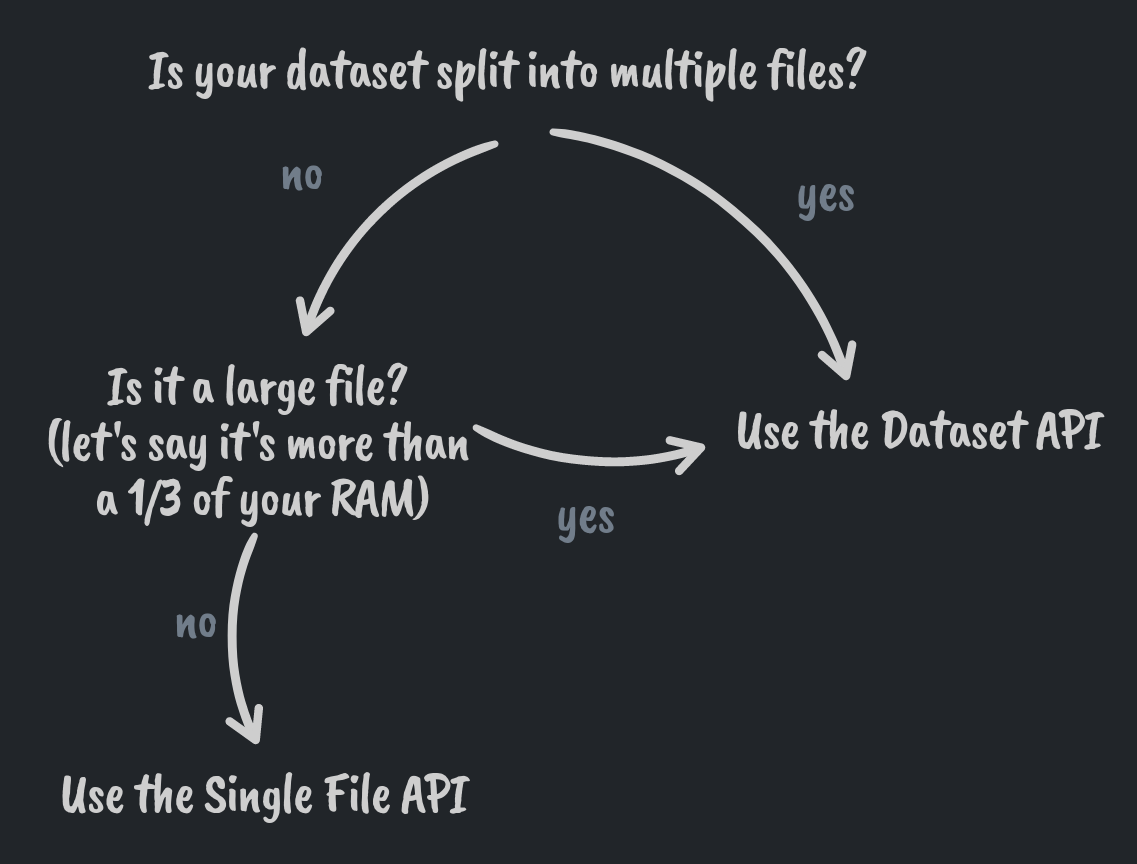

Arrow Table or Dataset?

https://francoismichonneau.net/2022/10/import-big-csv/

Arrow for Improving Those Sluggish Worklows

• a “drop-in” for many dplyr workflows (Arrow Table or Dataset)
• works when your tabular data get too big for your RAM (Arrow Dataset)
• provides tools for re-engineering data storage for better performance (arrow::write_dataset())

Lot’s of ways to speed up sluggish workflows e.g. writing more performant tidyverse code, use other data frame libraries like data.table or polars, use duckDB or other databases, Spark + splarklyr … However, Arrow offers some attractive features for tackling this challenge, especially for dplyr users.
